Box size

1360*270*650mm

Box material

QL5LQ250+170+120+140+200(5 L）

Box Material

AOKA250g+170+120+140+170light membrane

Unfold size

1300*598*1343mm

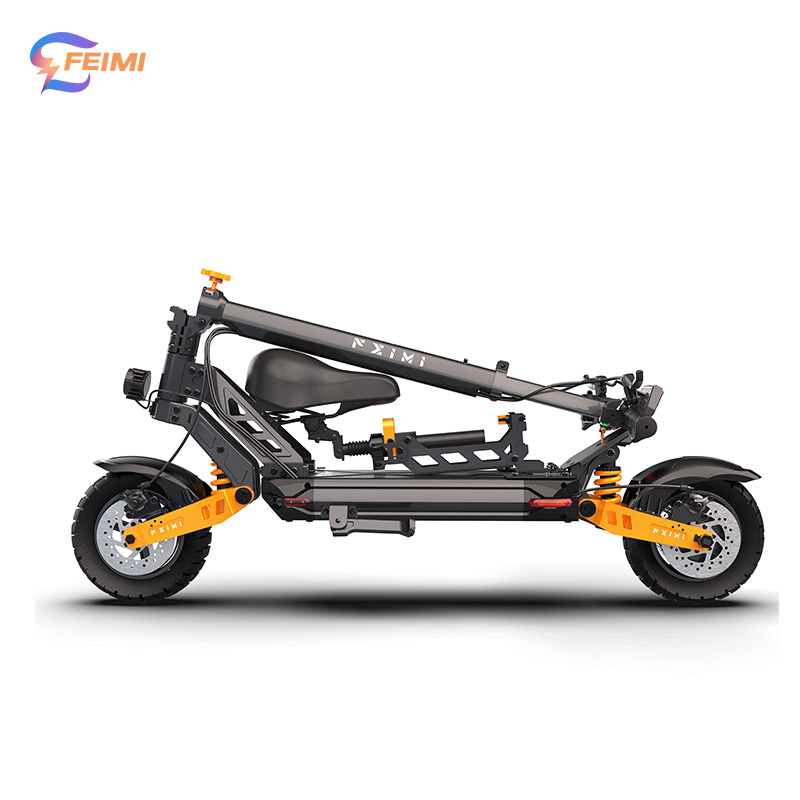

Folding size

1300*598*610mm

N.W

28.5KG

G.W

37KG

Handle bar width

598mm

Handle bar foding width

/

Pedal width

212mm

Pedal to ground height

162mm

Max load

120KG

Max speed

60KM(below 65kg）

Speed level

1、20km/h  2、35km/h 3、50km/h

Climbing alility

<20° slope

IP

IP45

Max range

≤60KM（Load65Kg,Temperature25°，no wind，flat road ，constant speed

Volt

48V

Battery type

18650Lithium

Battery size

17.5Ah

Motor

Brushless DC

Max power

1000W

Rotate speed

1480rpm

Rated voltage

48V

Max output torque

28N.M

Voltage

54.6V

Charging time

7-8 hours

Brake type

Front and Rear Disc brake

Brake distance

6-8M

LCD Display

speed，level，battery，range

Front light

LED

Rrear light

yes（normal and falsh）

Turning light

Yes

Front suspension

Spring Suspension

Rear  suspension

Spring Suspension

Handle bar

No

Frame

Foldable

9inch front wheel

10*3.0 inchPneumatic rubbertyre

 9inch rear wheel

10*3.0 inchPneumatic rubbertyre

frame color

Black+Orange
