Box size

1175*265*475mm

Box material

N5225A(5L）

Box Material

300g paper+4LA2L150gThicken+light membrane

Unfold size

1122*530*1185mm

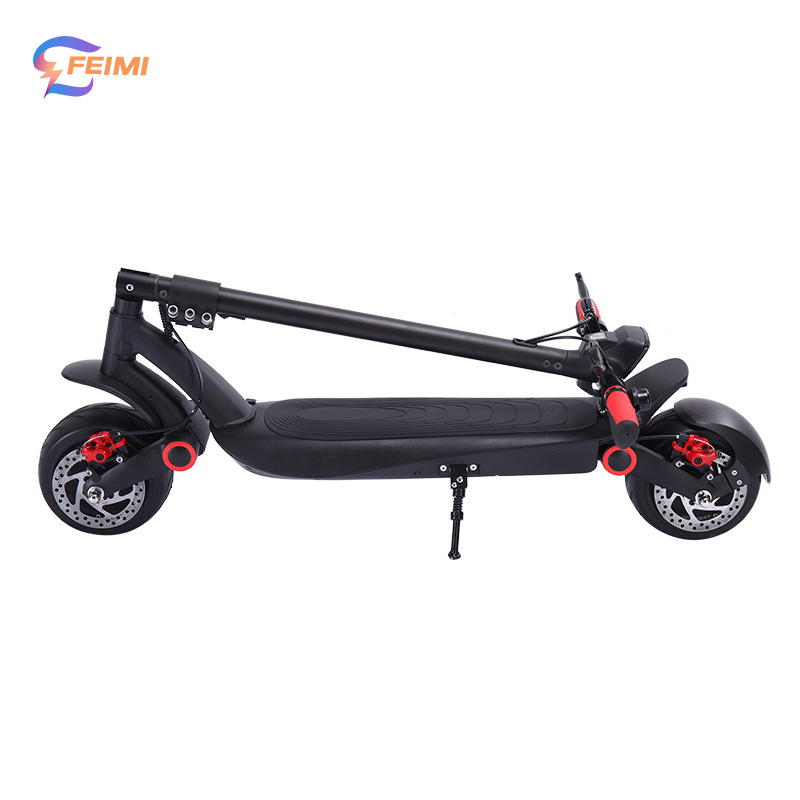

Folding size

1122*530*447mm

N.W

26KG

G.W

30KG

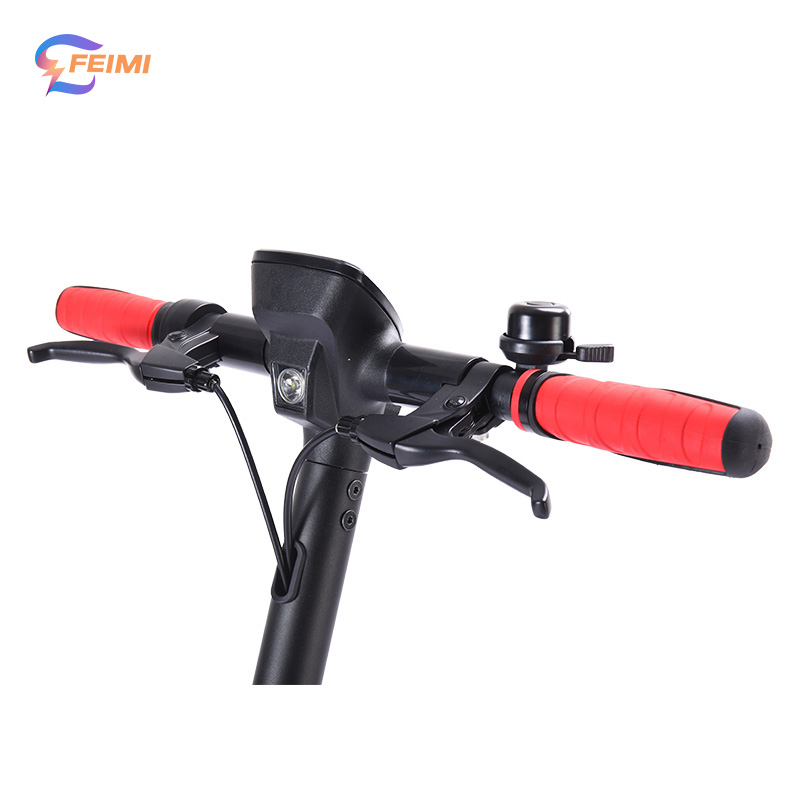

Handle bar width

525mm

Handle bar foding width

/

Pedal width

212mm

Pedal to ground height

110mm

Max load

100KG

Max speed

50KM(below 65kg）

Speed level

 1、15km/h  2、25km/h  3、50km/h

Climbing alility

15°slope

IP

IP45

Max range

≤50KM（Load65Kg,Temperature25°，no wind，flat road ，constant speed）

Volt

48V

Battery type

18650Lithium

Battery size

15Ah

Motor

Brushless DC

Max power

600W

Rotate speed

1200 rpm

Rated voltage

48V

Max output torque

28N.M

Voltage

54.6V

Charging time

7-8hours

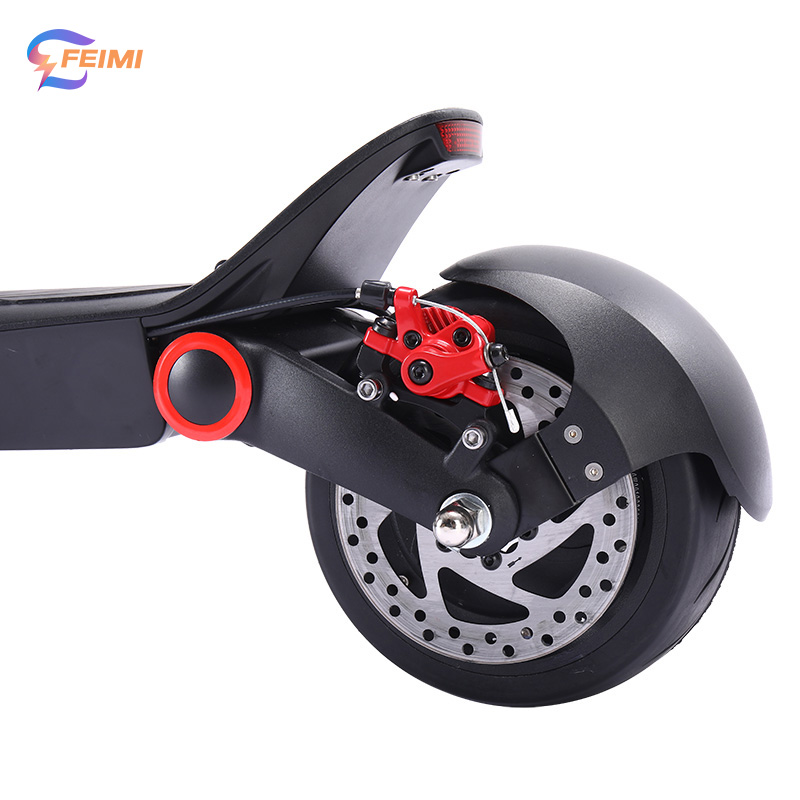

Brake type

Front and Rear Machine brake

Brake distance

4-8M

LCD Display

speed，level，battery，range, fault code

Front light

LED

Rrear light

yes（normal and falsh）

Turning light

No

Front suspension

Oxford Suspension

Rear  suspension

Oxford Suspension

Handle bar

No

Frame

Foldable

8inch front wheel

200*100 rubbertyre

8inch rear wheel

200*100 rubbertyre

frame color

Silver、Black、Yellow
