Box size

1170*227*415mm

Box material

N5225A(5L）

Box Material

300g paper+4LA2L150gThicken+light membrane

Unfold size

1100MM*566MM*1150MM

Folding size

1100MM*150MM*350MM

N.W

19.5KG

G.W

21KG

Handle bar width

566MM

Handle bar foding width

/

Pedal width

171MM

Pedal to ground height

164MM

Max load

120KG

Max speed

40KM(below 65kg）

Speed level

 1、15km/h  2、25km/h  3、40km/h

Climbing alility

<18° slope

IP

IP45

Max range

≤50KM (Load65Kg,Temperature25°，no wind，flat road ，constant speed）

Volt

48V

Battery type

18650 Lithium

Battery size

13Ah

Motor

Brushless DC

Max power

500W

Rotate speed

1150RPM

Rated voltage

48V

Max output torque

18NM

Voltage

54.6V

Charging time

4-5 hours

Brake type

Drum Brake

Brake distance

3.5-7m

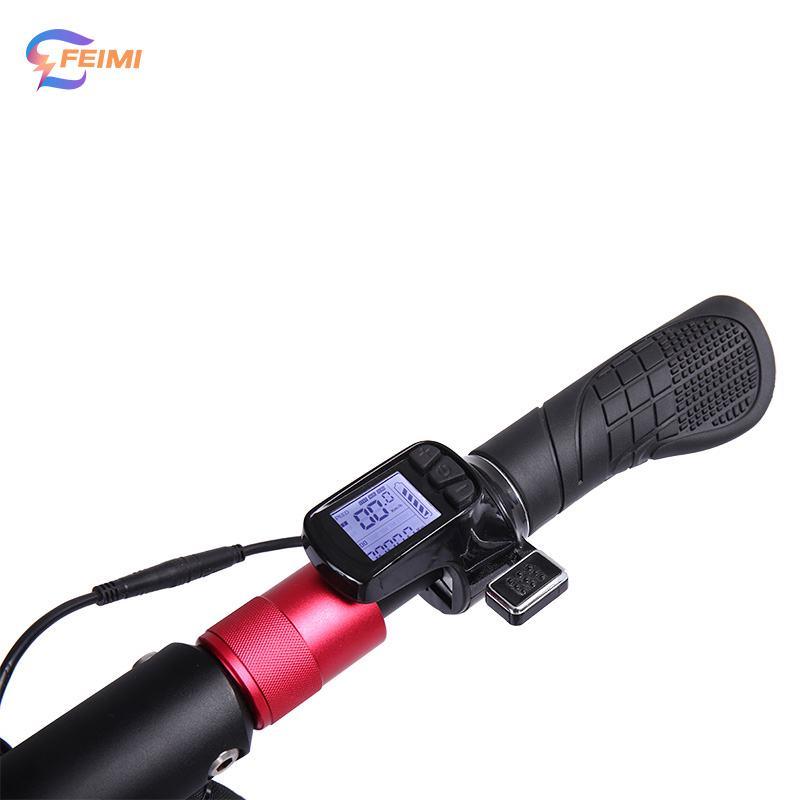

LCD Display

speed，level，battery，range

Front light

LED

Rrear light

yes（normal and falsh）

Turning light

No

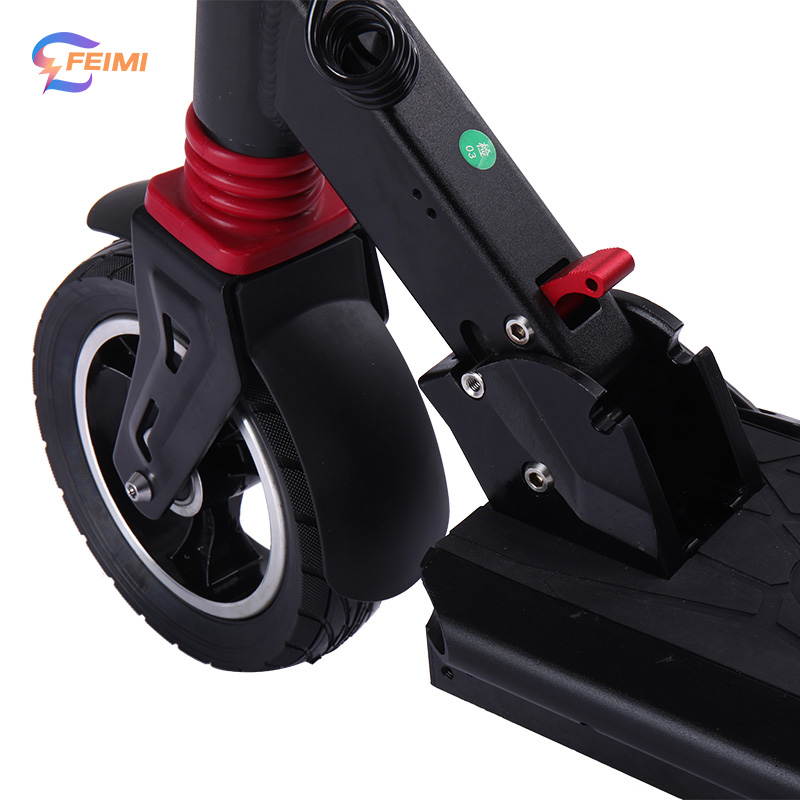

Front suspension

Spring Suspension

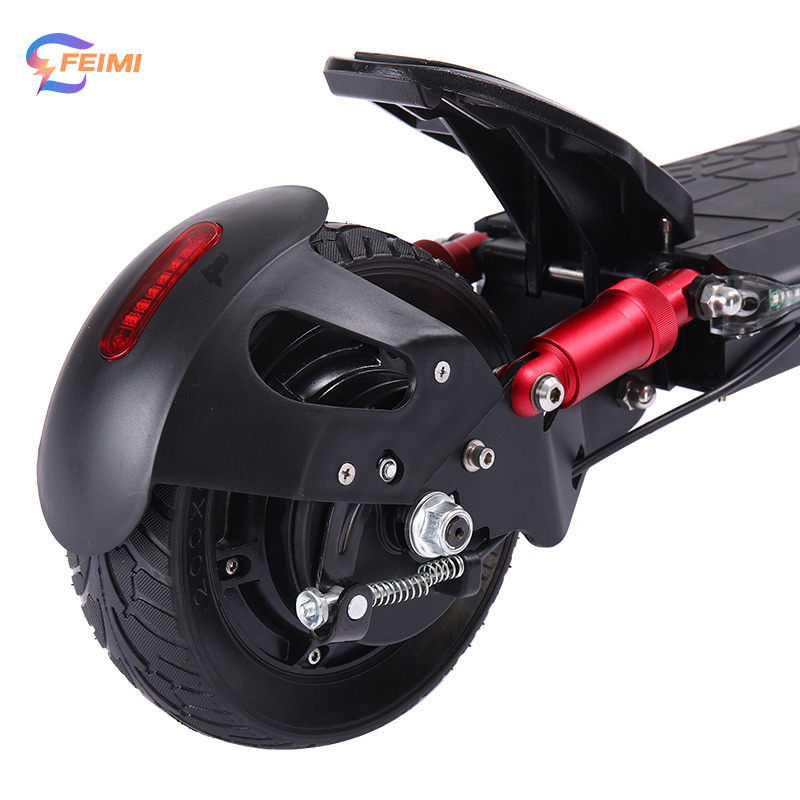

Rear  suspension

Spring Suspension

Handle bar

Foldable

Frame

Foldable

8inch front wheel

200*60Rubbertyre

8inch rear wheel

200*60Rubbertyre

frame color

Black
